Vertical Feed Mixer 12 m3
Vertical Feed Mixer 12 m3
Vertical Feed Mixer 12 m3
Vertical Feed Mixer 12 m3
Vertical Feed Mixer 12 m3
Feeder Mixers are very important parts of livestock farms by producing homogeneous feed for the animals. Tosun Vertical Feeder Mixers with its auger design make more homogeneus feed and prepare it in shortest time.By its chassi its height decreased.By the way it provides eases of use for the operator
Why Tosun Vertical Feeder Mixer ;

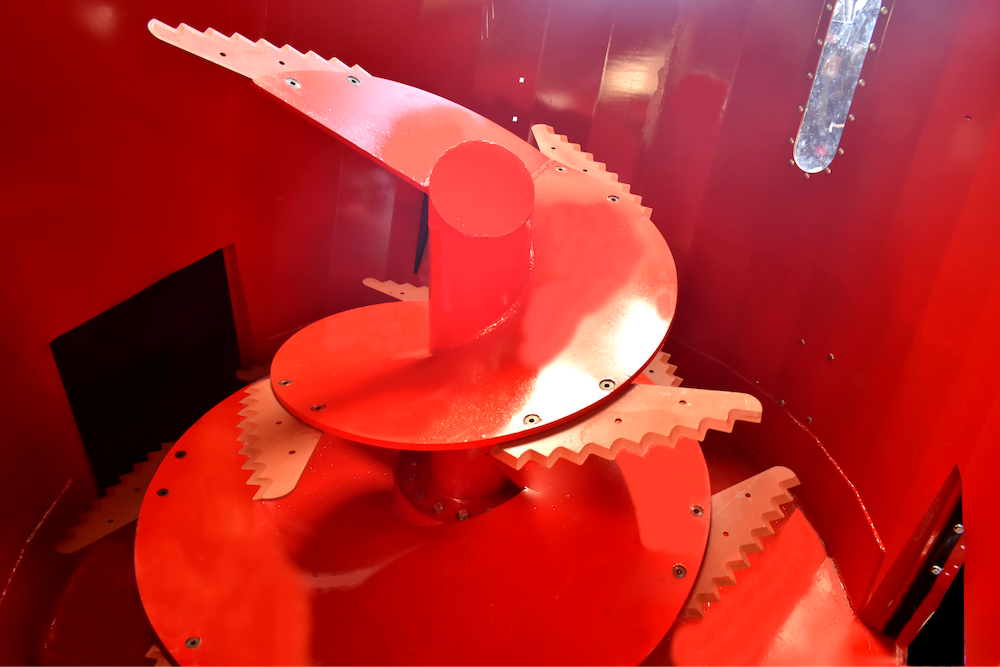

- Tosun’ s Vertical Feeder Mixers auger specially designed to maximize chopping for vertical feeder mixers
- The height of Tosun Feeder Mixers are decreased by its chassi design.That brought facilities about loading and controlling.
- Tosun Vertical Feeder Mixers has viewing panel on its body. By the way you can control inside of the machine without
difficulty.
| CAPACITY | 12 m3 |
| Empty Weight | 3850 kg |
| Wagon Width | 2,40 |
| Wagon Height | 2,92 |
| Wagon Length | 5,61 m |
| Total Width | - |
| Total Height | 3,75 m |
| Total Length | 6,85 m |
| Min.Tractor Motor Power Required | 65 Hp |
| Min. Tractor Shaft Devolution Required | 540 t/m |
| Drive Transmission System | Gearbox |
| Side Wall Thickness | 6 mm |
| Wagon Base Thickness | 15 mm |
| Blade System | 8 Piece |
| Tire Dimensions | 2x (400/60-15,5) |
| Lubrication System | Own Oil Depot |
| Height Adjustable Right Discharge | Mechanical |
| Hydraulic Support Foot | Standart |
| Rear Bucket Loader System | Hydraulic |
| Discharging Conveyor | Standart |
